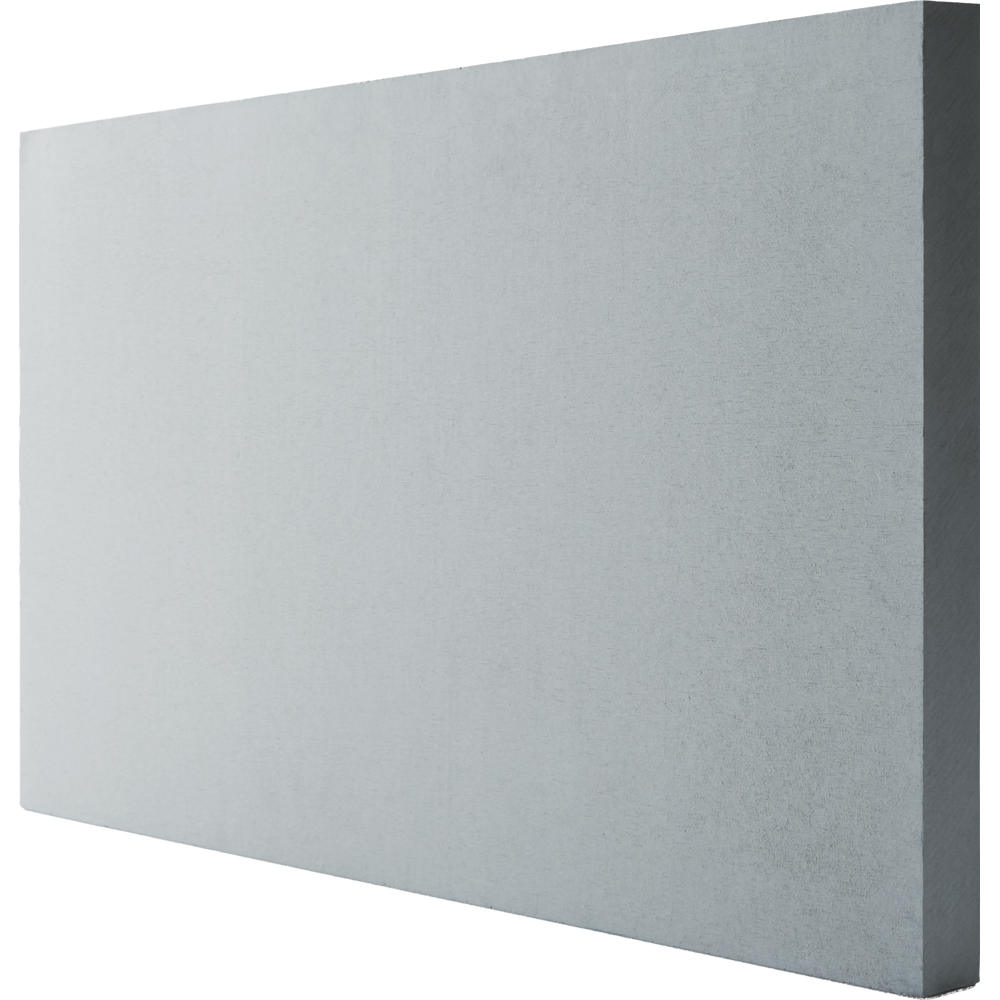

SkamoWall Board

SkamoWall Board is a calcium silicate board that ensures an improved indoor climate.

SkamoWall Board must be mounted with the associated system-specific products to ensure the best results and to validate the warranty.

All SkamoWall calcium silicate products have an EPD (Environment Product Declaration) which has been verified by a third party and published through EPD Denmark.

Remove loose plaster, tar, paint residue and organic materials. In case of mould growth, clean the wall with a biocide product. Use the Skamol Lime Mortar adhesive so that unevenness does not exceed 10mm.
Use common tools to resize and prepare SkamoWall Board for installations (e.g. electrical and plumbing). Apply Skamol Primer to the inward-facing side of the board.
Apply Skamol Lime Mortar to the SkamoWall Board and wall. Mount the boards on the wall and push the boards up against each other.
Apply Skamol Primer to the outward-facing side of the board to be plastered. Choose between Skamol Lime Mortar and Skamol Smooth Plaster. Use the selected plaster to fill the joints.
If necessary, you can mount Skamol Corner and Skamol Mesh for extra wall protection.
The wall can be painted, if desired.

Find out more about mounting here.

Brochure

Mounting instructions

Data sheet

Safety data sheet (SDS)

EPD

Pallet size

1,040 × 1,250 × 2,300mm.

Board size

1,000 × 610 × 25/30/50/100mm

1,220 × 1,000 × 25/30/50/100mm

Special sizes and polished surfaces are available upon request.

Area

Follows the size of the SkamoWall Board.

Storage

No requirements for storage conditions.

Contains

Microsilica
Quicklime

Standard is 1,000 × 610mm.

Other dimensions are possible up to 2,440 × 1,220mm.

Standard is 25, 30, 50 and 100mm.

Other thicknesses are possible from 20 to 105mm.

Insulation (r-value)

R = 0.37

Transmission coefficient (u-value)

U = 2.72

Thermal conductivity (lambda value)

λ = 0.068W/(m×K)

Insulation (r-value)

R = 0.74

Transmission coefficient (u-value)

U = 1.36

Thermal conductivity (lambda value)

λ = 0.068W/(m×K)

Insulation (r-value)

R = 1.47

Transmission coefficient (u-value)

U = 0.68

Thermal conductivity (lambda value)

λ = 0.068W/(m×K)

The SkamoWall Board is lightweight, high-strength and screw-friendly. This means that you can screw directly into the board.

If the load exceeds 2kg, we recommend using standard anchors, which can easily be mounted by predrilling into the SkamoWall Board.

No.

After applying Skamol Lime Mortar or Skamol Smooth Plaster you can paint the board.

SkamoWall Board is made of calcium silicate.

Other SkamoWall products

SkamoWall Bore

SkamoWall Bore is a bore used at the sides and top of windows. Like SkamoWall Board and SkamoWall Wedge, SkamoWall Bore is made of calcium silicate, which ensures an improved indoor climate. All SkamoWall calcium silicate products have an EPD (Environment Product Declaration), which has been verified by a third party and published through EPD Denmark.

Skamol Corner

Skamol Corner is a corner protector.

Skamol Lime Mortar

Skamol Lime Mortar is a lime-based ready-to-use product that can be used as both an adhesive and plaster when mounting SkamoWall. Mix a 20kg bag with approx. 4.5L of clean water for about 7 minutes, yielding 2.5m² as an adhesive (7mm) or 7m² as plaster (2mm). The work must be carried out within a temperature range of +5°C to +25°C. Use clean tools and make sure that the surface of the substrate is free of dust before applying the product. Store the product in its original packaging in a dry and dark place. Protect against moisture and negative temperatures.

Skamol Mesh

Skamol Mesh is a reinforcing mesh used only when mounting SkamoWall in buildings exposed to many major vibrations such as railroad tracks.

Skamol Primer

Skamol Primer is a ready-to-use primer that is applied to SkamoWall Board. Skamol Primer is a water-soluble primer made from colloidal silica. Skamol Primer improves adhesion and thus forms a good foundation for subsequent treatment. It should not be used if the temperature is below 5°C. Store the product in its original, unopened packaging in a cool, but frostproof place. It can be used for 24 months from the date of manufacture indicated on the packaging. The product is ready for use. 1L is sufficient for 5m². Drying time is approximately 30 minutes.

Skamol Smooth Plaster

Skamol Smooth Plaster is a ready-to-use smooth plaster to be used together with the calcium silicate SkamoWall Board. A 15kg bag must be mixed with approximately 5.5L to 6.5L of water, yielding around 7.5m² with a thickness of 2mm. Use clean tools and make sure that the surface of the substrate is primed and free of dust before applying the plaster. The work must be carried out within a temperature range of +5°C to +25°C. Store the product in the original packaging in a dry and dark place. Protect against moisture and negative temperatures.

SkamoWall Wedge

SkamoWall Wedge is a wedge used as a border between the wall and ceiling. Similar to SkamoWall Board and SkamoWall Bore, SkamoWall Wedge is made of calcium silicate, which ensures an improved indoor climate. All SkamoWall calcium silicate products have an EPD (Environment Product Declaration), which has been verified by a third party and published through EPD Denmark.
